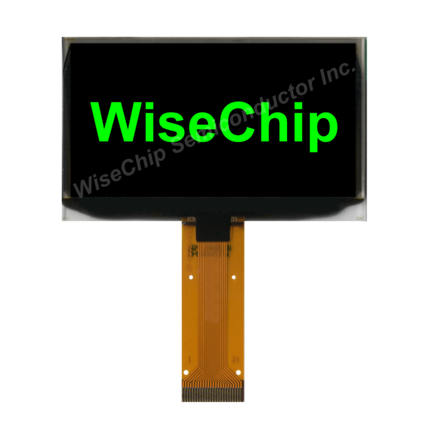

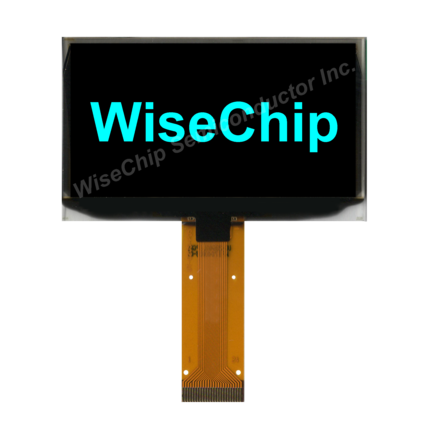

2.42” OLED Display
Our company has been specializing in manufacturing Monochrome Displays for many years, offering Organic Light-Emitting Diode, OLED Screen,OLED Display,OLED Light Panel, etc.
WiseChip, a leading innovator of PM OLED (Organic Light-Emitting Diode) technology：
WiseChip, a leading innovator of PM OLED (Organic Light-Emitting Diode) technology：
- High Contrast Ratio(10000：1)
- Free Viewing Angle
- Fast Response Time (≦ 10μs)
- Thinner & Lighter & Durable
- Wide Temperature Range (-40℃~85℃)
- No need of backlight, self emitting
- Apply to most products from any area.
- Trend of Displays
- Leading the green vision
明細
| > | Diagonal Size | 2.42" |
|---|---|---|
| > | Pixel No. | 128 x 64 |
| > | Color Depth | Light Blue, White, Yellow, Green |
| > | Panel Size(mm) | 60.50 × 37.00 × 2.00 |
| > | Active Area(mm) | 55.01 × 27.49 |
| > | Pixel Pitch (mm) | 0.43 × 0.43 ( 59 PPI ) |
| > | Interface | Parallel, 4-wire SPI, I2C |
安全/質承認、
- RoHS Compliant
- Halogen Free
- REACH Certificate
