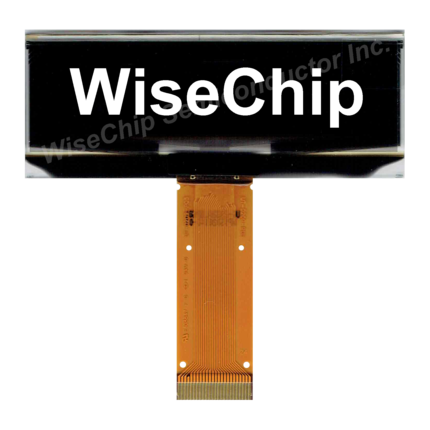

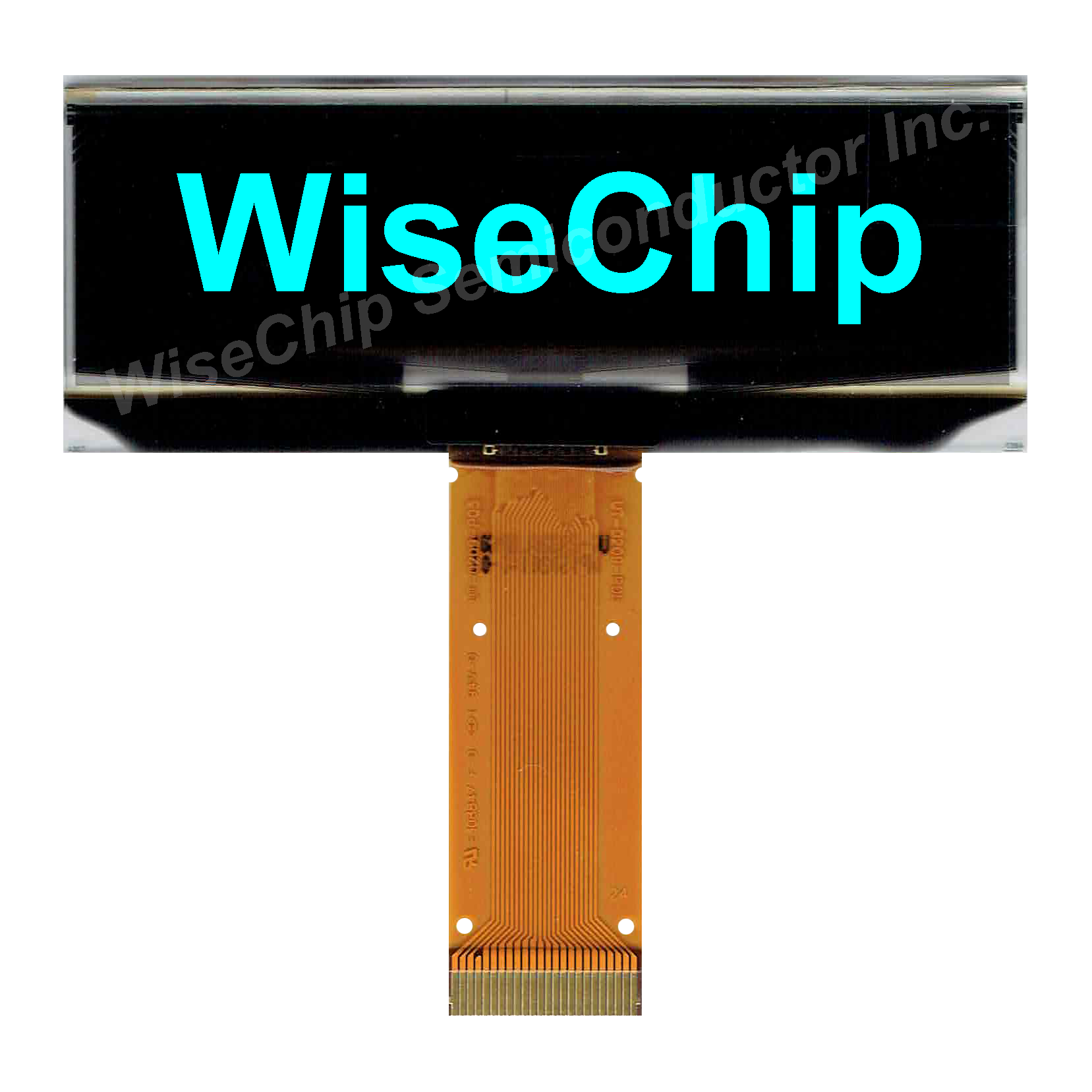

2.23” OLED Display
We are professional manufacturer of Monochrome Displays in Taiwan, providing Monochrome OLED and Area Color OLED with superior quality.
WiseChip, a leading innovator of PM OLED (Organic Light-Emitting Diode) technology：
WiseChip, a leading innovator of PM OLED (Organic Light-Emitting Diode) technology：
- High Contrast Ratio(10000：1)
- Free Viewing Angle
- Fast Response Time (≦ 10μs)
- Thinner & Lighter & Durable
- Wide Temperature Range (-40℃~85℃)
- No need of backlight, self emitting
- Apply to most products from any area.
- Trend of Displays
- Leading the green vision
明細
| > | Diagonal Size | 2.23" |
|---|---|---|
| > | Pixel No. | 128 x 32 |
| > | Color Depth | Light Blue, Yellow, White |
| > | Panel Size(mm) | 62.00 × 24.00 × 2.00 |
| > | Active Area(mm) | 55.02 × 13.10 |
| > | Pixel Pitch (mm) | 0.43 × 0.41 ( 59 PPI ) |
| > | Interface | Parallel, 4-wire SPI, I2C |
安全/質承認、
- RoHS Compliant
- Halogen Free
- REACH Certificate
