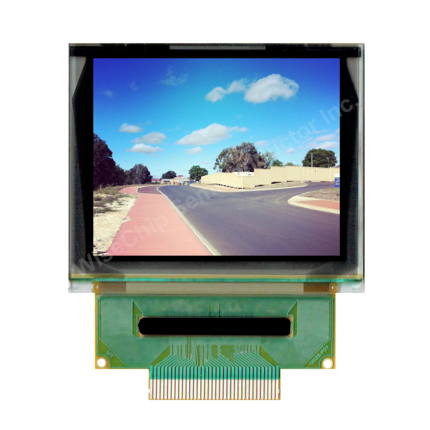

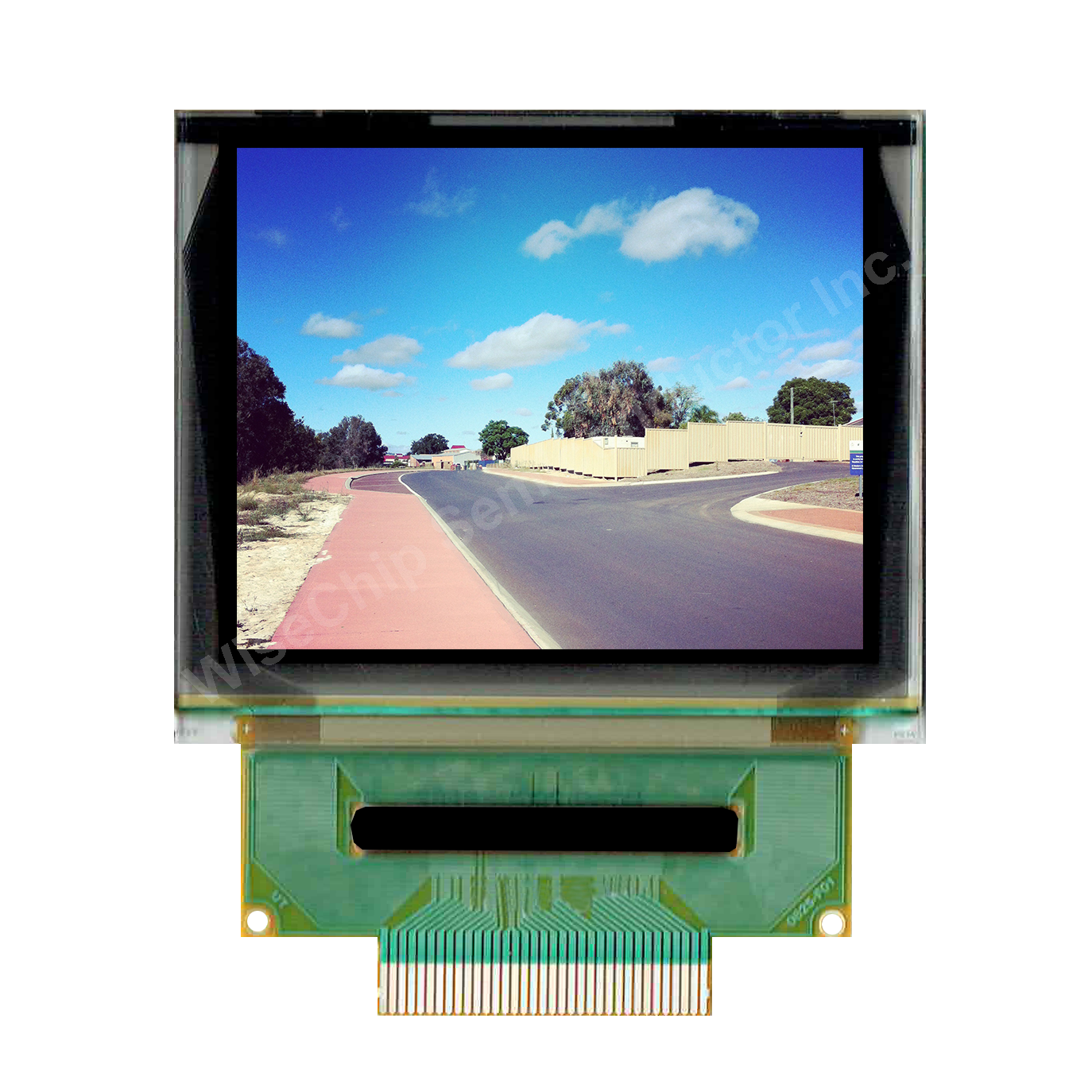

1.69” Full Color Display
WiseChip, a leading innovator of PM OLED (Organic Light-Emitting Diode) technology：
- High Contrast Ratio (10000：1)
- Free Viewing Angle
- Fast Response Time (≦ 10μs)
- Thinner & Lighter & Durable
- Wide Temperature Range (-40℃~85℃)
- No need of backlight, self emitting
- Apply to most products from any area.
- Trend of Displays
- Leading the green vision
明細
| > | Diagonal Size | 1.69" |
|---|---|---|
| > | Pixel No. | 160RGB × 128 |
| > | Color Depth | 262,144 Colors |
| > | Panel Size(mm) | 39.90 × 34.00 × 1.60 |
| > | Active Area(mm) | 33.575 × 26.864 |
| > | Pixel Pitch (mm) | 0.07 × 0.21 ( 121 PPI ) |
| > | Interface | Parallel, 4-wire SPI |
安全/質承認、
- RoHS Compliant
- Halogen Free
- REACH Certificate
